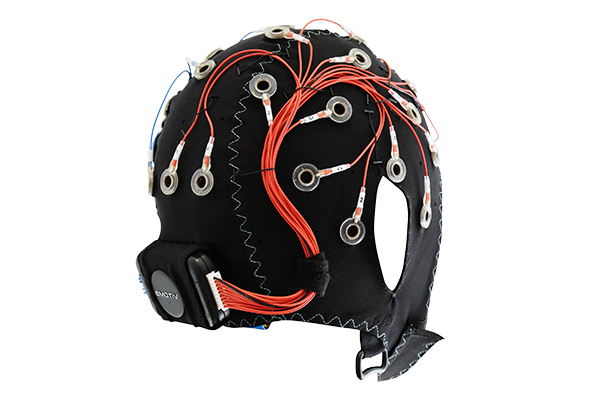

EMOTIV EPOC Flex
|
|||||
|---|---|---|---|---|---|
|
 |
 |
 |
||
- 32通道帽型无线EEG脑电系统
-
Emotiv Systems 脑电波帽。最多支持32个通道，可灵活改变传感器位置。
可获取原始脑电数据和频段数据，并可将高分辨率脑电数据无线传输至PC(需要Emotiv PRO许可)。
电池供电长达 9 小时，您可以从 3 种尺寸中进行选择。请在询问时告知我们您想要的尺寸。 - 制造商
-
美国，EMOTIV
产品型号
| 产品名称 | 型号 | 货期 | 单价 |
|---|---|---|---|
| EMOTIV EPOC Flex | Gel Sensor Kit（凝胶版） | 国外现货1~2周 | 折扣价 |
| EMOTIV EPOC Flex | Saline Sensor Kit（盐水版） | 国外现货1~2周 | 折扣价 |
产品描述
EMOTIV EPOC Flex - Saline Sensor Kit （盐水版）
套件内容
・EPOC Flex Control Box
- with USB charging cable
・Universal USB Receiver
- for wireless transmission (BTLE not supported)
・EPOC Flex Cap
- choose from 54cm, 56cm or 58cm
・EPOC Flex Saline Sensors
- 34 Saline soaked felt pads

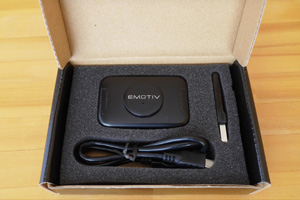

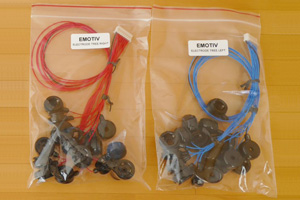

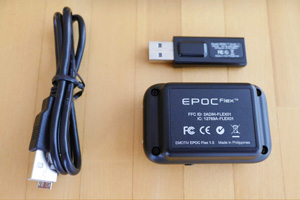

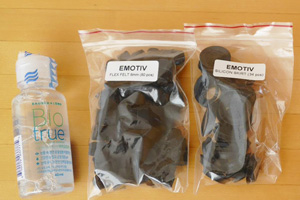

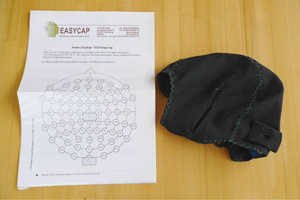

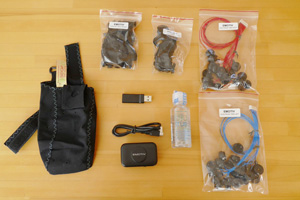

Saline Sensor Kit 产品图片：
-------------------------------------------------------
EMOTIV EPOC Flex - Gel Sensor Kit （凝胶版）
套件内容
・EPOC Flex Control Box
- with USB charging cable
・Universal USB Receiver
- for wireless transmission (BTLE not supported)
・EPOC Flex Cap
- choose from 54cm, 56cm or 58cm ※请选择您想要的尺寸
・EPOC Flex Gel Sensors
- 34 sintered silver-silver chloride gel sensors + compatible ear clips

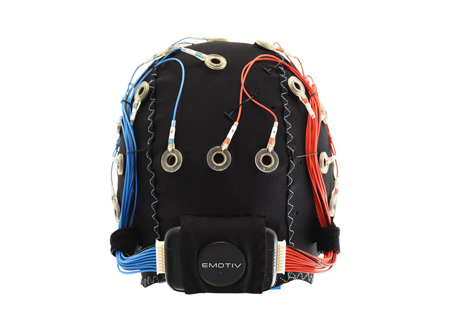

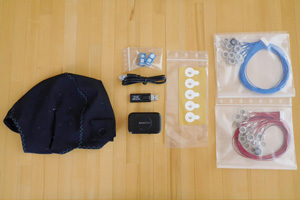

Gel Sensor Kit 产品图片：
【EMOTIV Flex 规格参数】
EEG support:
・Up to 32 channels: configurable
・2 references: CMS/DRL configurable in any 10-20 location or on ears (compatible ear clips for sensors included)
・Available data: raw EEG and frequency band data. Requires PRO License for use.
EEG signals:
・Sampling method: Sequential sampling, single ADC
・Sampling rate: 1024 internal downsampled to 128 SPS.
・Resolution: 14 bits with 1 LSB = 0.51μV (16 bit ADC, 2 bits instrumental noise floor discarded), compressed maximum slew rate 32uV per sample.
・Bandwidth: 0.16 - 43Hz, digital notch filters at 50Hz and 60Hz
・Dynamic range (input referred): 8400 μV(pp)
・Coupling mode: AC coupled
EEG sensors:
- Electrode count: 32 recording electrodes, 2 reference electrodes
- Sensor material: sintered silver-silver chloride, compatible with gel
- Size: profile height - 3.5 mm; central opening diameter - 6 mm
- Wire length: 36 cm
- Manufacturer: EasyCap
Supported platforms:
・Windows: 7,8,10; 2GB RAM; 500MB available disk space
・MAC: OS 10.10 or above; 2GB RAM; 500MB available disk space
要使用EMOTIV Flex，还需要购买EmotivPRO的软件。
